Electric power supply-AP101
Part No.: AP101
Power Supply Type: Electric Power Supply
Special Feature:

1.For electric equipments; triple outputs.

2.Small volume, stable operating status, isolated triple outputs.

3.With current-limiting protection, input over-voltage protection and output over-voltage/short-circuit protection, etc.

Electrical characteristics
Input Output
Rated voltage 57.5~380vac Voltage 9.7Vdc 13.5Vdc 9Vdc
Voltage range 35~460Vac Current 0.4A 1.0A 0.1A
Frequency 50Hz/60Hz ± 5% Regulation ±5% ±10% ±10%
Efficiency ≥70% Ripple and noise ≤90mVp-p ≤135mVp-p ≤90mVp-p
Leakage current ≤3.5mA
Safety characteristics
Safety standard
Safety UL60950/EN60950,IEC61010-1,GB4943-2001
Withstand voltage
Input-output Withstand voltage 4000Vac/10mA/1min
Input-FG Withstand voltage 4000Vac/10mA/1min
Input-Signal Withstand voltage 4000Vac/10mA/1min
Output-FG Withstand voltage 4000Vac/10mA/1min
Output-Signal Withstand voltage 4000Vac/10mA/1min
Operating Environment
Operating Temperature -25℃~55℃
Relative Humidity 20%~95%
Storage temp. -35℃~+85℃
Cooling Natural convection

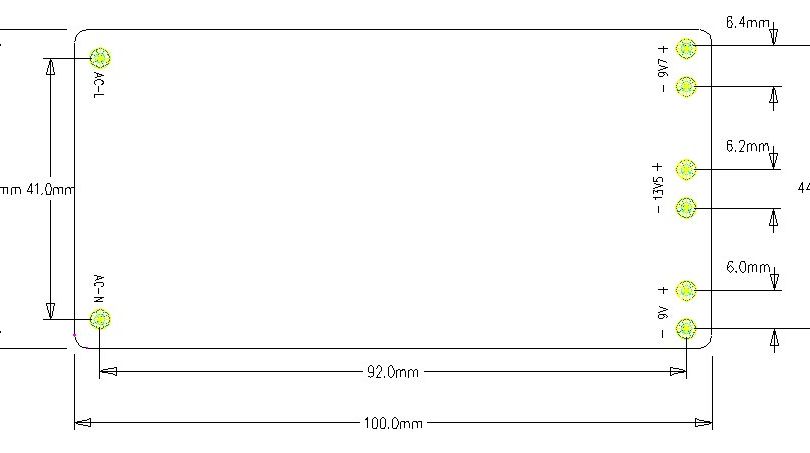

Structure drawing
