Led power supply-AP088
| Part No.: | AP088 |
| Power Supply Type: | LED Power Supply |
| Special Feature: | 1.LED driver with single output 2.Low ripple and noise ,high efficiency, high power factor, high reliability, etc. 3.With over-current/over-voltage/short-circuit/over-power protection. etc. |
Electrical characteristics
| Input | Output | ||
| Rated voltage | 100~240vac | Voltage | 5Vdc |
| Voltage range | 90~264Vac | Current | 40A |
| Frequency | 47~63Hz | Regulation | ≤±3% |
| Efficiency | ≥85% | Ripple and noise | ≤150mVp-p |
| Leakage current | ≤3.5mA | ||
Safety characteristics
| Safety standard | ||
| Safety | UL60950，EN60950 | |
| EMC | CE | CLASS B |
| RE | CLASS B | |
| Withstand voltage | |
| Input-output Withstand voltage | 3000Vac/10mA/1min |
| Input-FG Withstand voltage | 1500Vac/10mA/1min |
| Input-Signal Withstand voltage | |
| Output-FG Withstand voltage | 500Vac/10mA/1min |
| Output-Signal Withstand voltage | |
Operating Environment
| Operating Temperature | -10℃~45 |
| Relative Humidity | 10%~95% |
| Storage temp. | -20℃~+75℃ |
| Cooling | Natural convection |

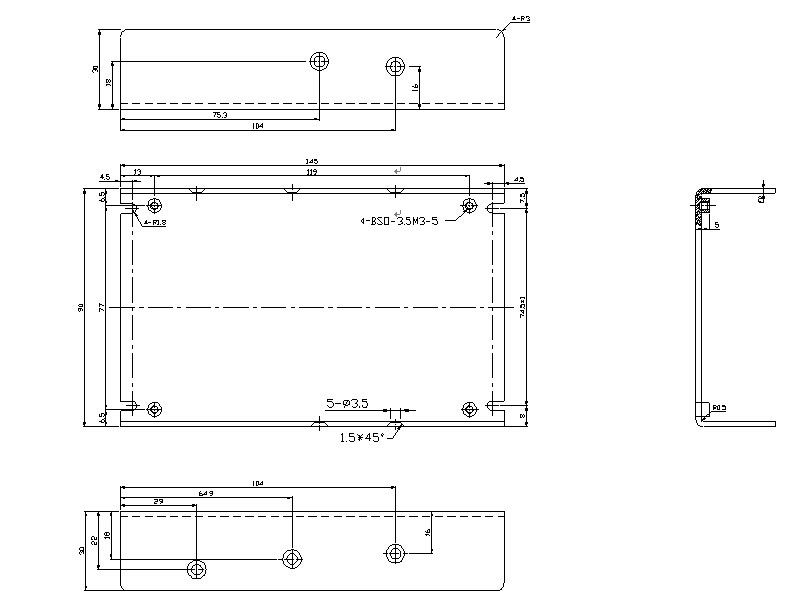

Structure drawing
