Medical power supply-AP027
Part No.: AP027
Power Supply Type: Medical Power Supply
Special Feature:

1. For injection pumps, single output.

2.High efficiency, low temperature-rise, high quality, low ripple and noise.

3.With output over-current/over-voltage/short-circuit protection, bulit-in EMI filter.


Electrical characteristics
Input Output
Rated voltage 100~240vac Voltage 17Vdc
Voltage range 90~264Vac Current 1.5A
Frequency 47~63Hz Regulation ≤±3%
Efficiency ≥72% Ripple and noise ≤50mVP-p
Leakage current ≤0.25mA
Safety characteristics
Safety standard
Safety UL60950,EN60950
Withstand voltage
Input-output Withstand voltage 4000Vac/1mA/1min
Input-FG Withstand voltage 1500Vac/5mA/1min
Input-Signal Withstand voltage
Output-FG Withstand voltage
Output-Signal Withstand voltage
Operating Environment
Operating Temperature -40~+55
Relative Humidity 10%~95%
Storage temp. -40℃~+80℃
Cooling Natural convection

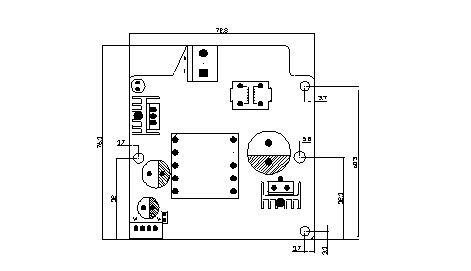

Structure drawing
