AP138
| Part No.: | AP138 |
| Power Supply Type: | Medical Power Supply |
| Special Feature: | 1.For patient monitors, single output. 2.High efficiency,low temperature-rise, high quality, low ripple and noise. 3.Output current-limiting/over-voltage/voltage/short-circuit protection,etc.
|
Electrical characteristics
| Input | Output | ||
| Rated voltage | 100~240vac | Voltage | 15Vdc |
| Voltage range | 90~264Vac | Current | 4.3A |
| Frequency | 47~63Hz | Regulation | ±5% |
| Efficiency | ≥80% | Ripple and noise | ≤150mVp-p |
| Leakage current | ≤3.5mA | ||
Safety characteristics
| Safety standard | ||
| Safety | UL60601,EN60601 | |
| EMC | CE | EN550011,CLASS B |
| RE | EN55011,CLASSB | |
| Withstand voltage | |
| Input-output Withstand voltage | 4000Vac/5mA/1min |
| Input-FG Withstand voltage | 2000Vac/5mA/1min |
| Input-Signal Withstand voltage | |
| Output-FG Withstand voltage | 500Vac/5mA/1min |
| Output-Signal Withstand voltage | |
Operating Environment
| Operating Temperature | 0℃~45℃ |
| Relative Humidity | 10%~95% |
| Storage temp. | -40℃~+80 |
| Cooling | Natural convection |

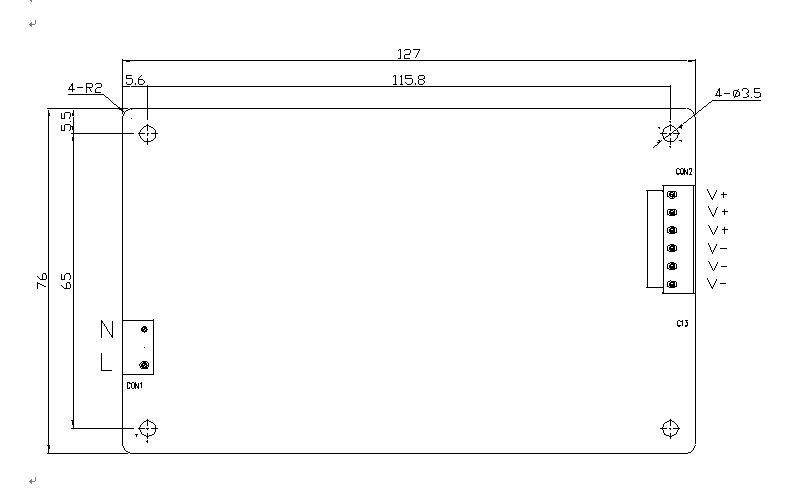

Structure drawing
