Medical power supply-DY126
Part No.: DY126
Power Supply Type: Medical Power Supply
Special Feature:

1.For patient monitors, 4 outputs with battery management.

2.High efficiency,low temperature-rise, high quality, low ripple and noise.

3.With output over-current/over-voltage/short-circuit protection.

Electrical characteristics
Input Output
Rated voltage 16~18 Vdc Voltage 5Vdc 5Vdc 12Vdc 10Vdc
Voltage range 16~18 Vdc Current 1A 2A 3A 1A
Frequency Regulation ±2% ±2% ±5% ±2%
Efficiency ≥78% Ripple and noise ≤30mVp-p@ 25℃ 30mVp-p@ 25℃ 50mVp-p@ 25℃ 50mVp-p@ 25℃
Leakage current ≤0.3mA
Safety characteristics
Safety standard
Safety GB9706.1-2007,IEC60601-1: 1988 +A1:1991 +A2:1995
Withstand voltage
Input-output Withstand voltage
Input-FG Withstand voltage
Input-Signal Withstand voltage
Output-FG Withstand voltage
Output-Signal Withstand voltage
Operating Environment
Operating Temperature 0~50
Relative Humidity 5%~95%
Storage temp. -20℃~85℃
Cooling Natural convection

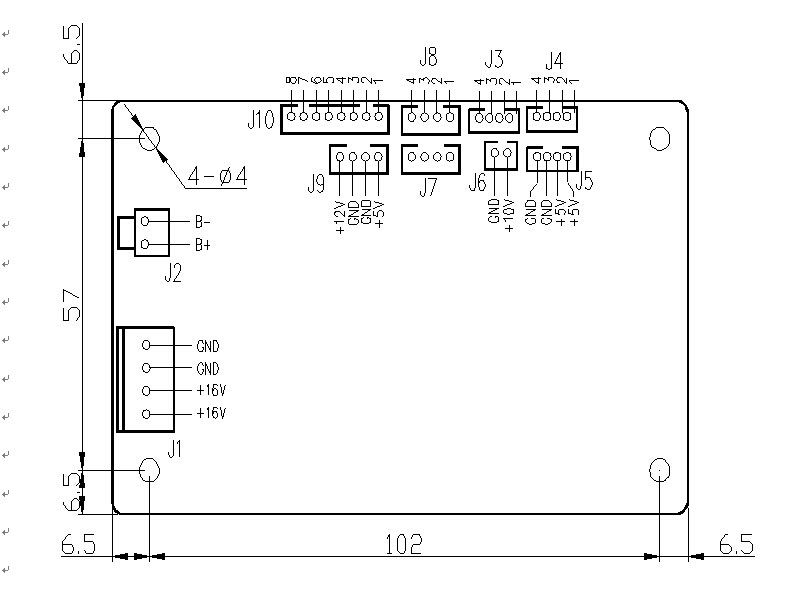

Structure drawing
